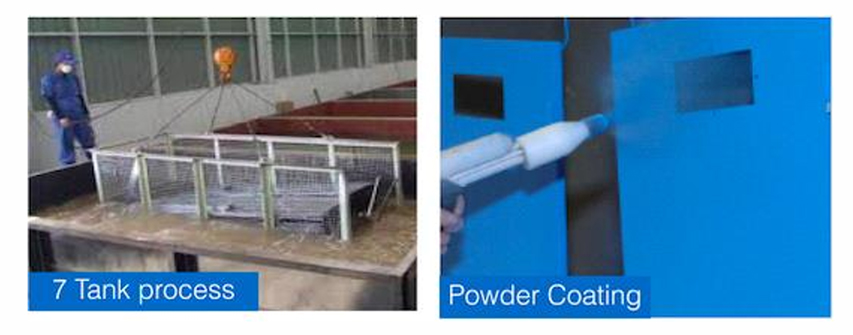

7 TANK POWDER COATING UNIT
Superior Finish Machine Body
Body made of high quality Steel, 7 tank process to activate surace for powder coat bonding and final coat of high quality EP & PP (Pure polyester) powder coating. Superior finish and long life corrosion protection. Increase machine life and reduce maintenance coat
| FURNACE SIZE | FOOT |
| LENGTH | 8.5 |
| WIDTH | 6.0 |
| HEIGHT | 7.5 |
| TOTAL VOLUMETRIC CAPACITY | 10.75 METER SQUARE |
- 1. Degreasing: Removal of grease and oil alkaline conditions (hydroxides, surfactants, emulsifiers)
- 2. Rinsing: Rinsing with water
- 3. Pickling: Remove the inorganic residues (rust) acids (hydrochloric acid, phosphoric acid, sulfuric acid)
- 4. Rinsing: Rinsing with water
- 5. Activation: Creation of nucleation on the top layer of metal (titanium salt). This step determines the character much later phosphate layer
- 6. Phosphating: Zinc formation of the phosphate layer with phosphoric acid, and zinc salts
- 7. Passivation: Protection for the addition of salts (such as chromium salts)
